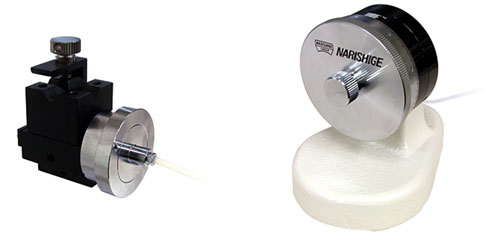

MHW-4 Hydraulic Micromanipulator


This model is an add-on type single-axis water hydraulic micromanipulator, attachable to ball joint B-9. Made for use with the MHW-3 in patch clamping applications, it offers excellent stability with minimal drifting.

*Separately sold AP-11/AP-13-1 Patch Clamp Headstage Holders mountable.

Accessories included Connector
Movement range Fine 2mm
Full rotation of knob: 50um
Minimum graduation: 0.2um
Dimensions/Weight Control unit W70 x D115 x H100mm, 1.15kg
Drive unit W42 x D28 x H41mm, 60g
